Atrial Fibrillation (AFib)

caution
Lead II
25 mm/s10 mm/mV
HR72bpm
RR833msQT—
Type

An irregularly irregular rhythm with no P waves and a restless fibrillatory baseline, at whatever rate the AV node lets through.

Updated

What to look for

  1. No P waves. Look in front of each QRS. There is no P wave.
  2. A restless baseline. Between the QRS complexes the line is never flat. The small, uneven waves are fibrillation waves (f waves).
  3. Irregularly irregular. Measure a few R-R intervals. They are all different, and they have no pattern.
  4. A narrow QRS. Under 120 ms.

To find the rate, count the QRS complexes in 6 seconds and multiply by 10. In AF each R-R is different, so the rate is an average. Here it is about 85 per minute. Over 100 is AF with a rapid ventricular response. Under 60 is AF with a slow ventricular response.

The strip

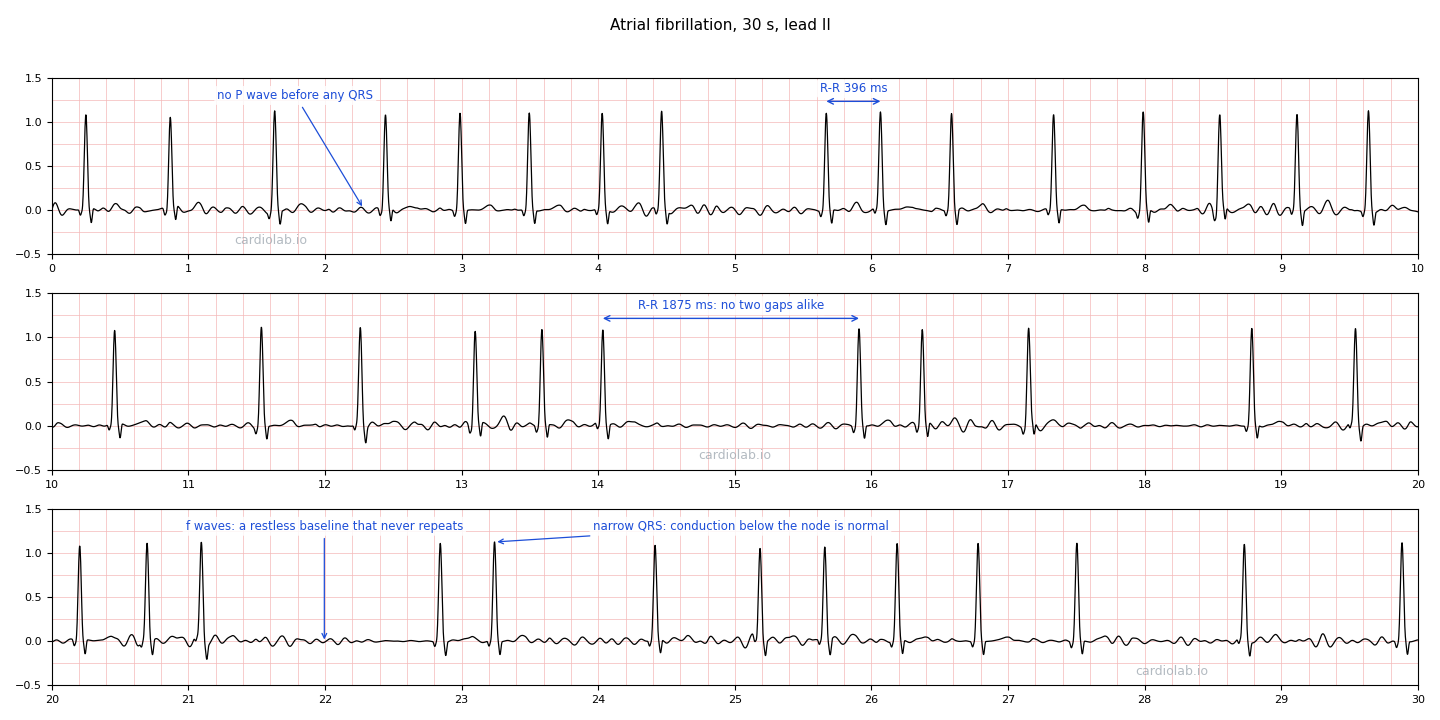

Thirty seconds of atrial fibrillation in lead II. Work through the four points above: look for a P wave, then compare a few R-R intervals.

Look-alikes

Why it matters

The atria do not contract, so blood can clot in them. AF makes a stroke 3 to 5 times more likely. It is the most common sustained arrhythmia.

Next: the 12-leadAtrial fibrillation, rate controlled, on the 12-leadThe same heart on all twelve leads, with why it happens, what it means and how it is treated.
