Junctional Escape Rhythm
The AV junction taking over at 40 to 60 bpm when the sinus node stops supplying beats: narrow QRS, inverted P after it.

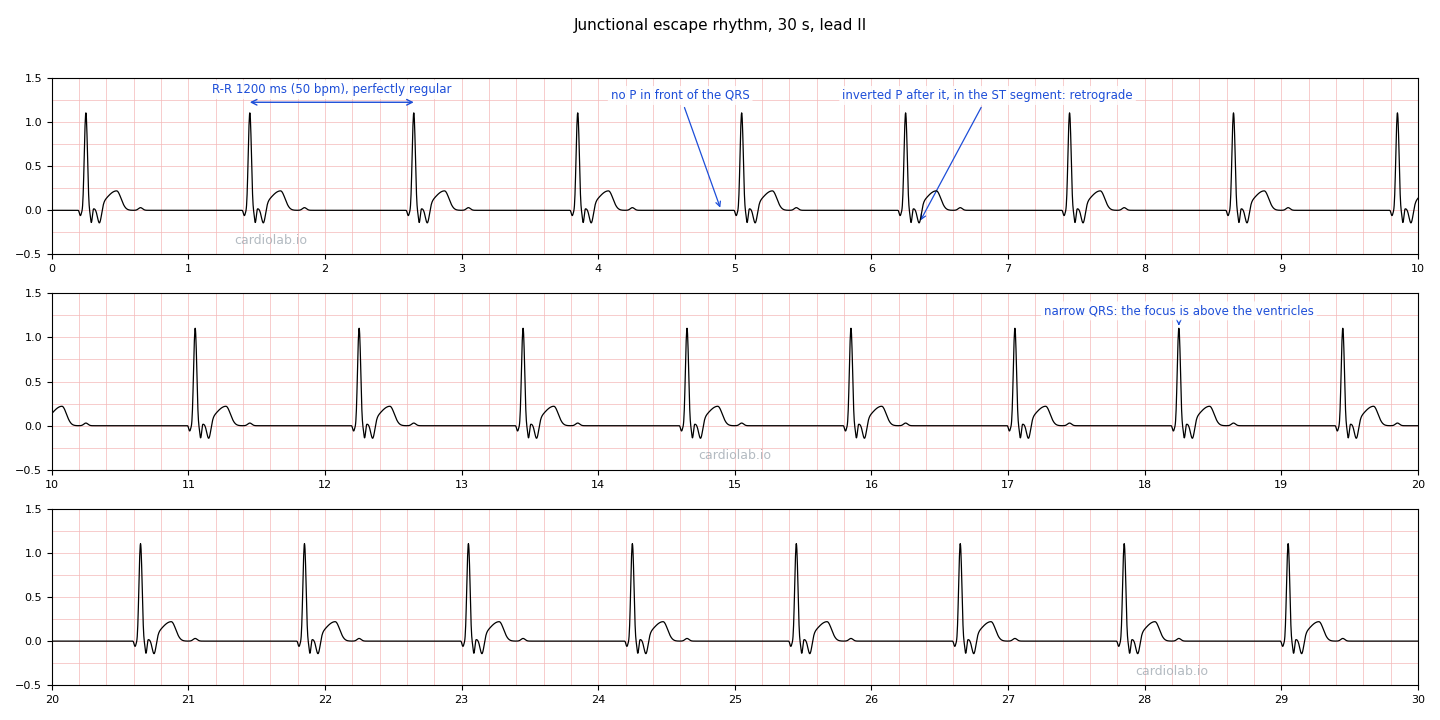

On the trace
Read the strip in this order.
- Take the rate.
Show
50 bpm, R-R 1200 ms on every beat. Slow, and perfectly regular. That combination is the first clue: a failing sinus node is usually irregular, and an escape focus is not. - Measure the QRS.
Show
48 ms. Narrow, and identical every time. Whatever is pacing this heart is above the ventricles and using the normal conduction system. - Look in front of the QRS.
Show
Nothing. No P wave, no PR interval to measure. At this point the rhythm could be junctional or ventricular, and the QRS width has already told you it is not ventricular. - Look after the QRS instead.
Show
There is the P, sitting in the ST segment 100 ms past the R and pointing downward, 0.14 mV below the line. An inverted P in lead II means the atria were depolarised from the bottom upward. - Put those two together.
Show
The atria were activated backwards, and they were activated after the ventricles. Both follow from one focus firing in the junction and sending an impulse each way at once.
How to recognise it
| Feature | Value | Notes |
|---|---|---|
| Rate | 40 to 60 bpm | 50 here. Below 40 is junctional bradycardia, above 60 the accelerated rhythm. |
| Rhythm | Regular | An escape focus keeps its own time very precisely. |
| QRS | Narrow, 48 ms here | Under 120 ms unless there is pre-existing bundle branch block. |
| P wave | Inverted, after the QRS | Negative in II, III and aVF, upright in aVR and V1. May instead fall before the QRS with a PR under 120 ms, or be buried in it. |
| RP interval | 100 ms here | The time the impulse takes to climb back to the atria. |
| Onset | Passive | It appears because something else stopped, never because it sped up. |

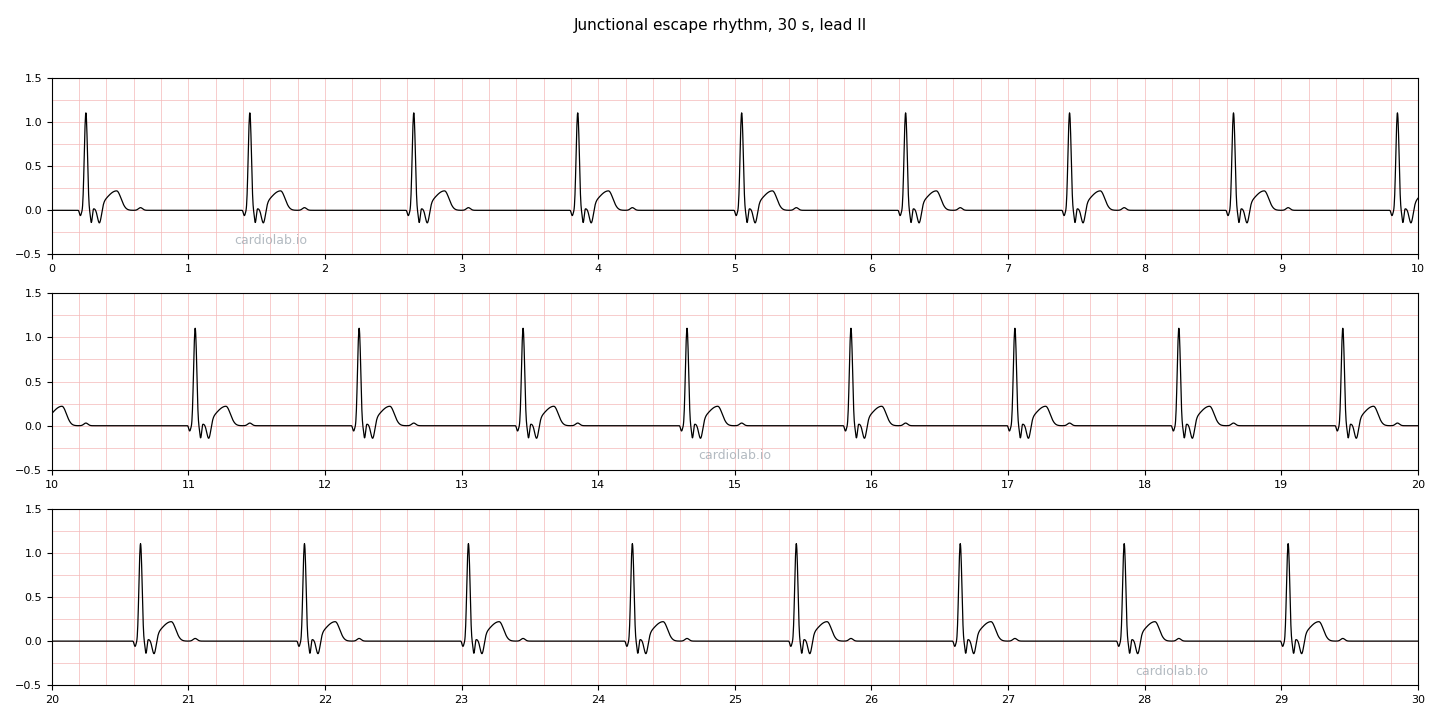

The strip
Mechanism
Every part of the conduction system can generate its own beat, and each does so more slowly the further down it sits. The sinus node runs fastest, so it wins, and everything below it is reset before it ever reaches threshold. That suppression is the only reason a normal ECG shows sinus rhythm.
Take the sinus node away and the suppression goes with it. The AV junction reaches threshold at its own pace, 40 to 60 times a minute, and starts pacing. The impulse leaves the junction in both directions: down the His-Purkinje system, which is why the QRS is narrow and normal, and back up into the atria, which is why the P wave is inverted. The ventricles are closer, so they go first, and the P lands after the QRS.
Go deeperShow less
Where the P lands, and why it moves
The P can arrive before the QRS, inside it, or after it, and the position is set by how fast the impulse travels each way rather than by anything about the rhythm. Retrograde conduction that is quicker than antegrade puts the P first, with a PR interval under 120 ms. Equal speeds bury it inside the QRS and it vanishes. Slower retrograde conduction, as on this strip, puts it in the ST segment. All three are the same rhythm.
Why this is a rescue and not a problem
An escape rhythm is a symptom of the thing above it. Sinus node disease, high-grade AV block, raised vagal tone, inferior myocardial infarction affecting the AV nodal supply, beta-blockers, calcium-channel blockers, digoxin and hyperkalaemia all produce it, and the prognosis belongs to whichever of those is responsible. The escape focus itself has no independent effect on mortality.
The practical consequence is a rule worth holding onto: never suppress an escape rhythm. Treating the slow rate by suppressing the only pacemaker the patient has left produces asystole.
Escape beats against escape rhythm
One or two junctional beats ending a pause is an escape beat, and it is a normal response to a sinus pause of any cause. Three or more in a row is an escape rhythm. The distinction matters because isolated escape beats need nothing at all, while a sustained escape rhythm means the sinus node has not come back.
Dissociation by default
When the sinus node is slow rather than silent, both pacemakers run at once and neither controls the other. That is atrioventricular dissociation by default, and it is the commonest form. It looks alarming and is not the same as complete heart block: in block the atria are faster and cannot get through, whereas here they are simply slower than the junction and there is nothing to get through for.
Clinical impact
Whether this rhythm matters depends entirely on the patient in front of you. The same 50 bpm is unremarkable in a sleeping athlete and dangerous in someone hypotensive and confused.
Management
Decide whether the rate is a problem
Symptoms are the test: dizziness, breathlessness, presyncope, hypotension, confusion. An asymptomatic junctional escape rhythm from high vagal tone needs nothing.
Find what removed the sinus node
Review rate-slowing drugs, check potassium, look for inferior ischaemia, and consider sinus node disease. The cause is the diagnosis, not the escape.
Atropine and pacing if the patient is compromised
Standard bradycardia management applies. Atropine first, then chronotropic infusion or transcutaneous pacing if it fails.
Never suppress it
The junction is the only pacemaker the patient has. Suppressing it removes the floor beneath the rhythm.
Differential
The identical beat at 60 to 100 bpm. Same focus, same morphology, opposite meaning: that one has sped up to take over, this one is filling a gap.
The next escape focus down. Also slow, also regular, also without a preceding P, but the QRS is wide because it starts in ventricular muscle. Width settles it.
Slow with an upright P before every QRS and a normal PR. The sinus node is still working here, only slowly.
P waves present, regular and faster than the QRS, marching through without conducting. The escape rhythm below the block may look identical to this one.
References
- Junctional Escape Rhythm — Life in the Fast Lane, ECG Library, 2024
- Junctional Rhythm: Background, Pathophysiology and Treatment — Medscape Drugs and Diseases, 2024
- Atrioventricular Dissociation — StatPearls, NCBI Bookshelf NBK563205, 2023
