Polymorphic VT

critical
Lead II
25 mm/s10 mm/mV
HR—bpm
RR—QT—
Type

Polymorphic VT in the setting of QT prolongation, with a spindle-shaped waxing-and-waning amplitude that twists around the isoelectric line.

Updated

What to look for

  1. A long QT on the sinus beats. Here about 620 ms at 75 per minute: the T ends well past halfway to the next beat.
  2. The short-long-short start. A premature beat (short), a pause after it (long), then a second premature beat on the T of the beat after the pause (short).
  3. The twist. In the run, the complexes grow, shrink, pass through the baseline and come back the other way up.
  4. It stops. After a few seconds the run ends on its own and the long-QT sinus rhythm returns, until the next one.

The strip

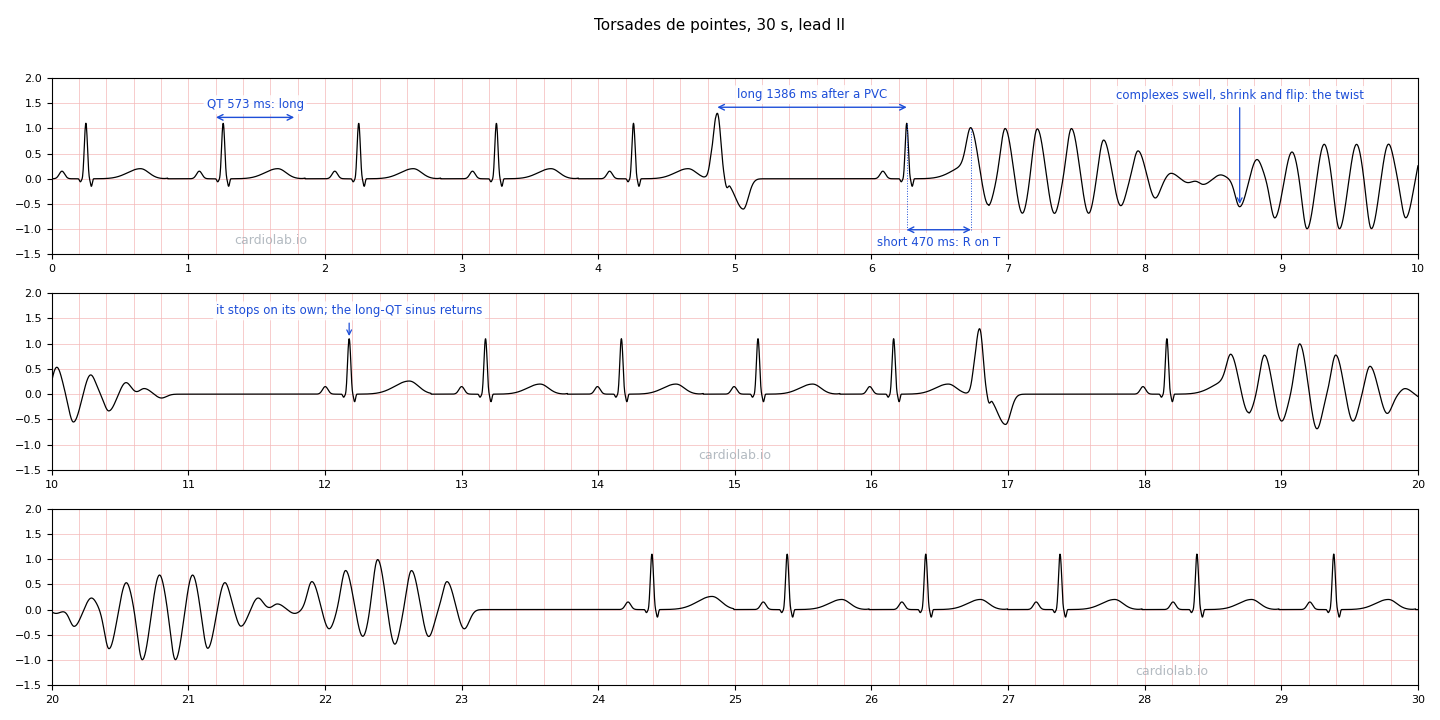

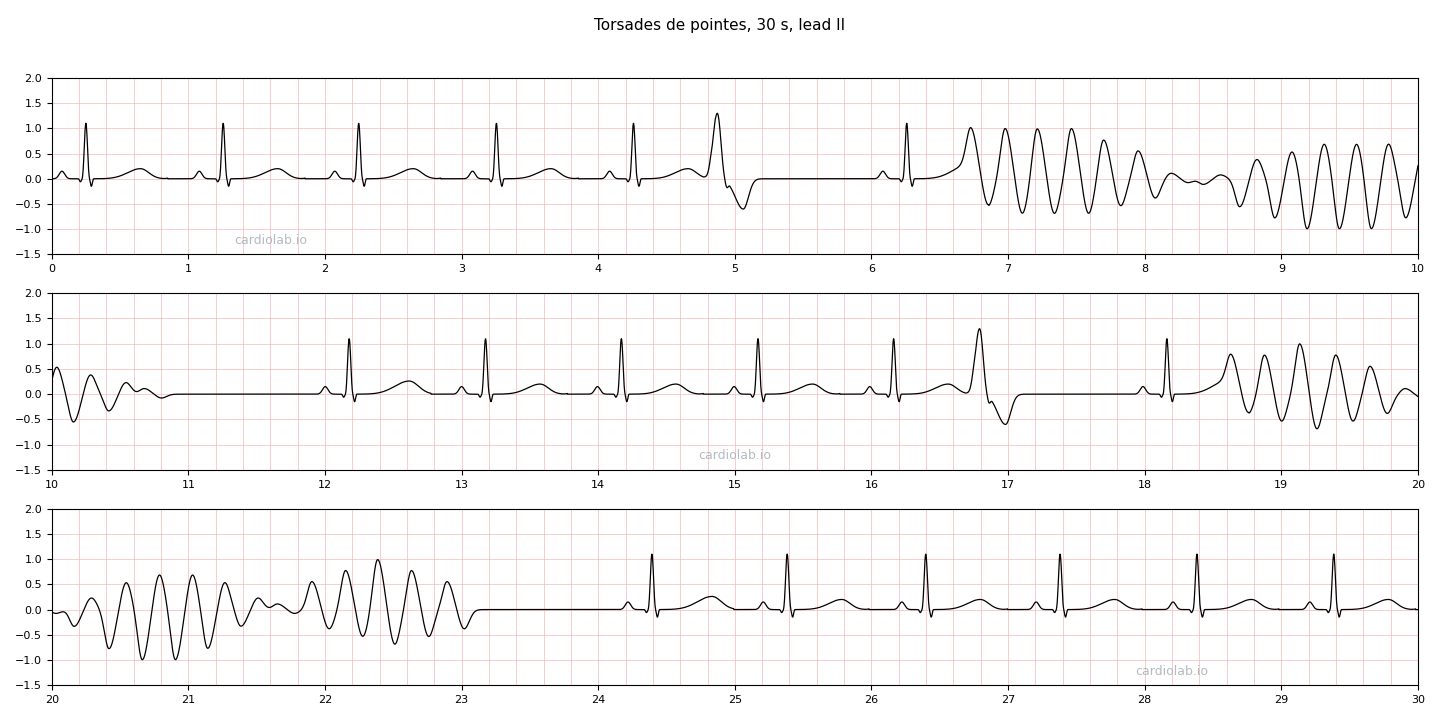

Thirty seconds of lead II with runs of torsades de pointes. Measure the QT on a sinus beat first, then find the short-long-short start of a run.

Look-alikes

Why it matters

Most runs stop on their own and cause dizziness or fainting. A run that does not stop can turn into ventricular fibrillation. The usual causes are a drug that prolongs the QT and low potassium or magnesium, and the treatment is magnesium, not the drugs used for other VT.

Next: the 12-leadTorsades de pointes on the 12-leadThe same heart on all twelve leads, with why it happens, what it means and how it is treated.

References

  1. 2022 ESC Guidelines for the management of patients with ventricular arrhythmias and the prevention of sudden cardiac death — European Heart Journal, 2022
  2. Torsade de Pointes — StatPearls, 2023
