Monomorphic VT

critical
Lead II
25 mm/s10 mm/mV
HR72bpm
RR833msQT—
Type

A rapid, regular wide-complex tachycardia with uniform beat-to-beat morphology, arising from a sustained ventricular focus.

Updated

What to look for

  1. Wide complexes. Every QRS is over 120 ms: here about 156 ms.
  2. All the same. Every complex has the same shape: one circuit, one exit.
  3. Fast and regular. The R-R is the same beat after beat: here 384 ms, 156 per minute.
  4. P waves marching through. The sinus node keeps firing at its own slower rate. Its P waves land anywhere on the VT complexes, unrelated to them: AV dissociation.
  5. The odd narrow beat. Now and then a narrow beat comes early: a capture, a sinus impulse that got through. It all but proves VT.

To find the rate, count the complexes in 6 seconds and multiply by 10. VT runs at 100 to 250 per minute. It is sustained when it lasts over 30 seconds, or has to be stopped sooner.

The strip

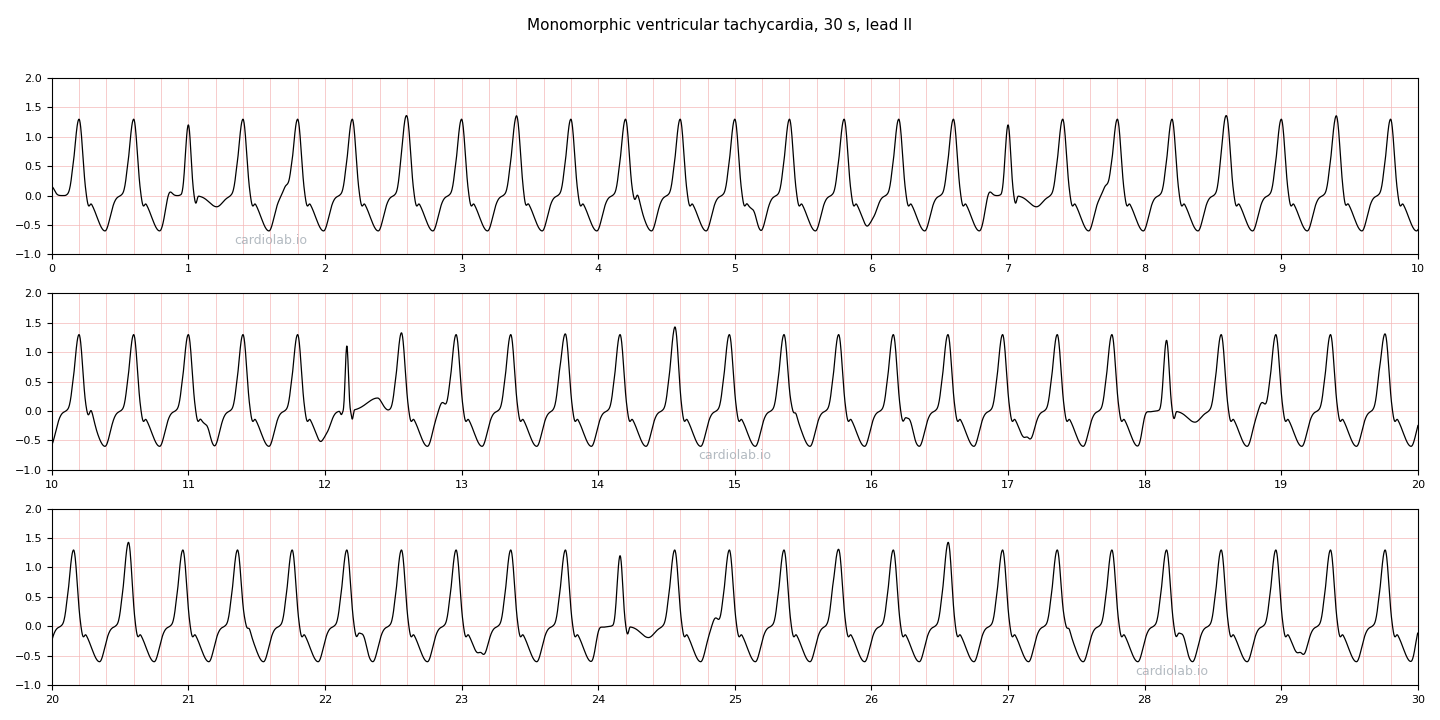

Thirty seconds of sustained monomorphic VT in lead II. Work through the five points above: the width, the shape, the rate, then look for P waves and an odd beat out.

Look-alikes

Why it matters

The ventricles are activated slowly, cell to cell, so they pump less. With a weak heart the blood pressure can fall at once, and VT can degenerate into ventricular fibrillation. It is an emergency even when the patient looks well.

Next: the 12-leadVentricular tachycardia on the 12-leadThe same heart on all twelve leads, with why it happens, what it means and how it is treated.

References

  1. 2022 ESC Guidelines for the management of patients with ventricular arrhythmias and the prevention of sudden cardiac death — European Heart Journal, 2022
  2. 2017 AHA/ACC/HRS Guideline for Management of Patients with Ventricular Arrhythmias and the Prevention of Sudden Cardiac Death — Circulation, 2018
  3. Comments on the 2022 ESC guidelines for the management of patients with ventricular arrhythmias and the prevention of sudden cardiac death — Revista Española de Cardiología, 2022
