An early atrial beat that finds a bundle branch still refractory: a wide QRS with a premature P in front of it.

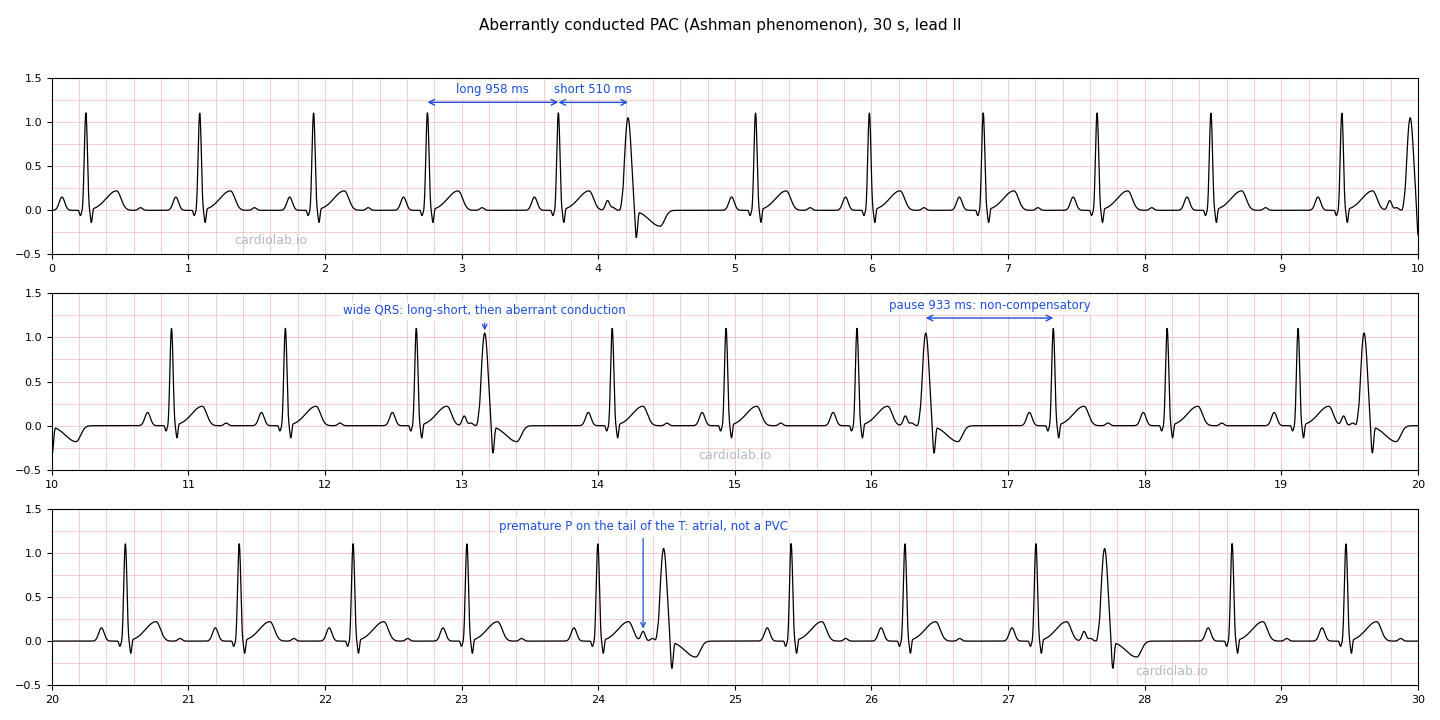

On the trace
Read the strip in this order.
- Find the wide beat.
Show
It is early, and its QRS measures about 140 ms against 76 ms for every other complex on the strip. On its own this looks ventricular. - Look immediately in front of it.
Show
There is a premature P wave. A ventricular ectopic has nothing there. This one fact settles the diagnosis, and it is the reason to look before reaching for the word PVC. - Measure the two cycles before it.
Show
The cycle before the ectopic is long, 958 ms, and the coupling into the ectopic is short, 497 ms. Long, then short, then wide: that sequence is the Ashman phenomenon, and it is a cause rather than a coincidence. - Look at the shape of the wide beat.
Show
The extra width is in its terminal part, a prominent late S in this lead. It is a bundle branch block pattern, not the broad bizarre shape of a beat starting in ventricular muscle. - Check the pause.
Show
Non-compensatory, as after any PAC, because the atrial ectopic reset the sinus node. A PVC would leave a fully compensatory pause.
How to recognise it
| Feature | Value | Notes |
|---|---|---|
| P wave | Present and premature | The finding that makes it supraventricular. Absent in a PVC. |
| Preceding cycles | Long then short | 958 ms then 497 ms here, a ratio near two. |
| QRS width | Wide, about 140 ms here | Against 76 ms for the sinus beats. Usually narrower than a true PVC. |
| Morphology | Bundle branch block pattern | Right bundle type in most cases, with the initial QRS vector preserved. |
| Pause | Non-compensatory | The atrial ectopic resets the sinus node. |

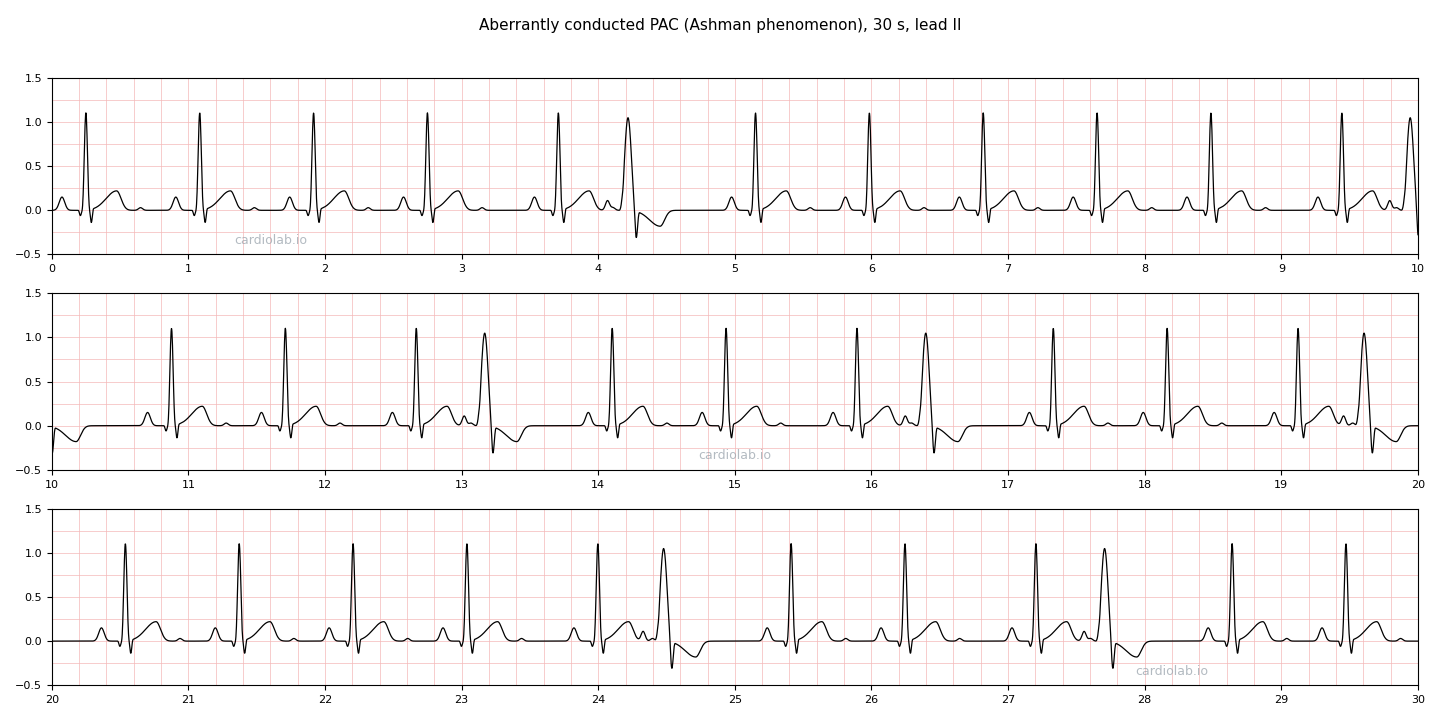

The strip
Mechanism
How long a piece of conducting tissue stays refractory depends on how long the cycle before it was. After a long cycle, everything below the atria has a longer refractory period than usual. If the very next beat is early, it can arrive before the His-Purkinje system has recovered.
The right bundle recovers more slowly than the left, so it is usually the one still blocked. The impulse goes down the left bundle instead, activates the left ventricle on time and the right ventricle late, cell to cell across the septum. That delay is the whole of the extra width. Nothing about the beat is ventricular in origin: it started in the atrium, went through the node, and simply took an uneven route through the last part of the system.
Go deeperShow less
Why long then short
Refractoriness tracks the preceding R-R. A long cycle lengthens it, and a short cycle arriving straight afterwards catches the tissue at its least recovered. Either cycle on its own is usually not enough; it is the combination that produces the block. This is why the same focus can conduct normally at one moment and aberrantly at another, depending only on where in the rhythm its beat lands.
Why the right bundle
The right bundle has the longer refractory period of the two, so at any given prematurity it is the more likely to still be blocked. Right bundle branch morphology therefore dominates, with a preserved initial QRS vector because septal activation is unchanged. Left bundle patterns do occur and are less common.
Telling it from a PVC, in order of usefulness
The premature P in front of the beat is decisive when it is visible. After that, the long-short sequence, a bundle branch block shape rather than a bizarre one, a QRS that is wide but not as wide as a ventricular beat, and a pause that is not fully compensatory. Coupling is another pointer: ventricular ectopics from one focus tend to couple at a fixed interval, whereas aberrancy appears wherever the cycle lengths happen to line up.
Where it matters most
In atrial fibrillation the cycle lengths vary constantly, so long-short sequences occur all the time and Ashman beats are common. They are then read as PVCs or as short runs of ventricular tachycardia in a patient who has neither, which is the usual route to an unnecessary antiarrhythmic.
Clinical impact
The beat carries no prognosis of its own. The prognosis belongs to whatever rhythm it is happening in.
Management
Identify it rather than treat it
Find the premature P and the long-short sequence. Aberrancy needs no treatment at all.
Do not start an antiarrhythmic for it
Suppressing what looks like ventricular ectopy here treats a beat that was never ventricular, with all of the drug's risk and none of its purpose.
Treat the underlying rhythm
If the aberrant beats are appearing in atrial fibrillation, the fibrillation is the diagnosis that matters.
Address the ectopy only if the burden warrants it
As for any frequent atrial ectopy: look for stimulants, electrolyte disturbance and thyroid disease.
Differential
The diagnosis this beat is usually given. No P in front, a broader and more bizarre QRS, fixed coupling from a single focus, and a fully compensatory pause.
The same ectopic arriving when the bundles have recovered. Identical P, narrow QRS.
Several consecutive aberrant beats can look like a short run of ventricular tachycardia. Each aberrant beat still has its own premature P.
The rhythm where Ashman beats are commonest, because the varying cycle lengths supply long-short sequences continuously.
References
- Ashman Phenomenon — StatPearls, NCBI Bookshelf NBK562311, 2024
- 2019 ESC Guidelines for the management of patients with supraventricular tachycardia — European Heart Journal, 2020
